Daikin Outdoor Unit

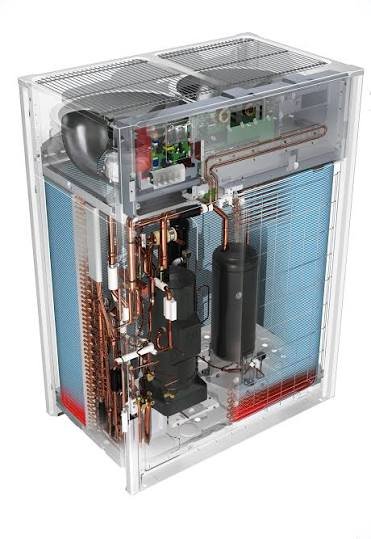

• • DC Inverter Compressor (Center Black Cylinder): The heart of the unit, which modulates its motor speed to continuously adjust the flow rate of the refrigerant.
  • Accumulator / Receiver (Right Black Cylinder): A pressure vessel that stores excess liquid refrigerant to protect the compressor from liquid slugging.
  • Blue Fin Heat Exchanger Coil (Outer Perimeter): The wrap-around copper tubing with aluminum blue fins used for heat transfer with the outdoor air.
  • Twin Propeller Fans (Top): Aerodynamically shaped fan blades powered by high-efficiency DC motors that draw air upward through the heat exchanger.
  • Inverter PCB / Control Box (Top Center/Right): The microprocessor brain containing the power electronics, inverter drives, and communication ports for managing the system.
  • Copper Refrigerant Piping & Valves (Left Front): Complex internal piping layout featuring electronic expansion valves (EEVs) and 4-way reversing valves to control heating/cooling direction.

• • Compressor Technology: Reluctance DC scroll compressor utilizing high-strength neodymium magnets to maximize partial-load operating efficiency.
  • Refrigerant Control: Pulse-amplitude modulation (PAM) control combined with electronic expansion valves that measure superheat and subcooling down to tiny fractional adjustments.
  • Oil Management: Automated oil-return lubrication loop that monitors and forces oil back into the compressor sump during sustained low-capacity operation.
  • Electronics Cooling: The inverter power modules are often cooled by a dedicated refrigerant cooling circuit loop to ensure reliable high-ambient outdoor operation without overheating the PCBs.
