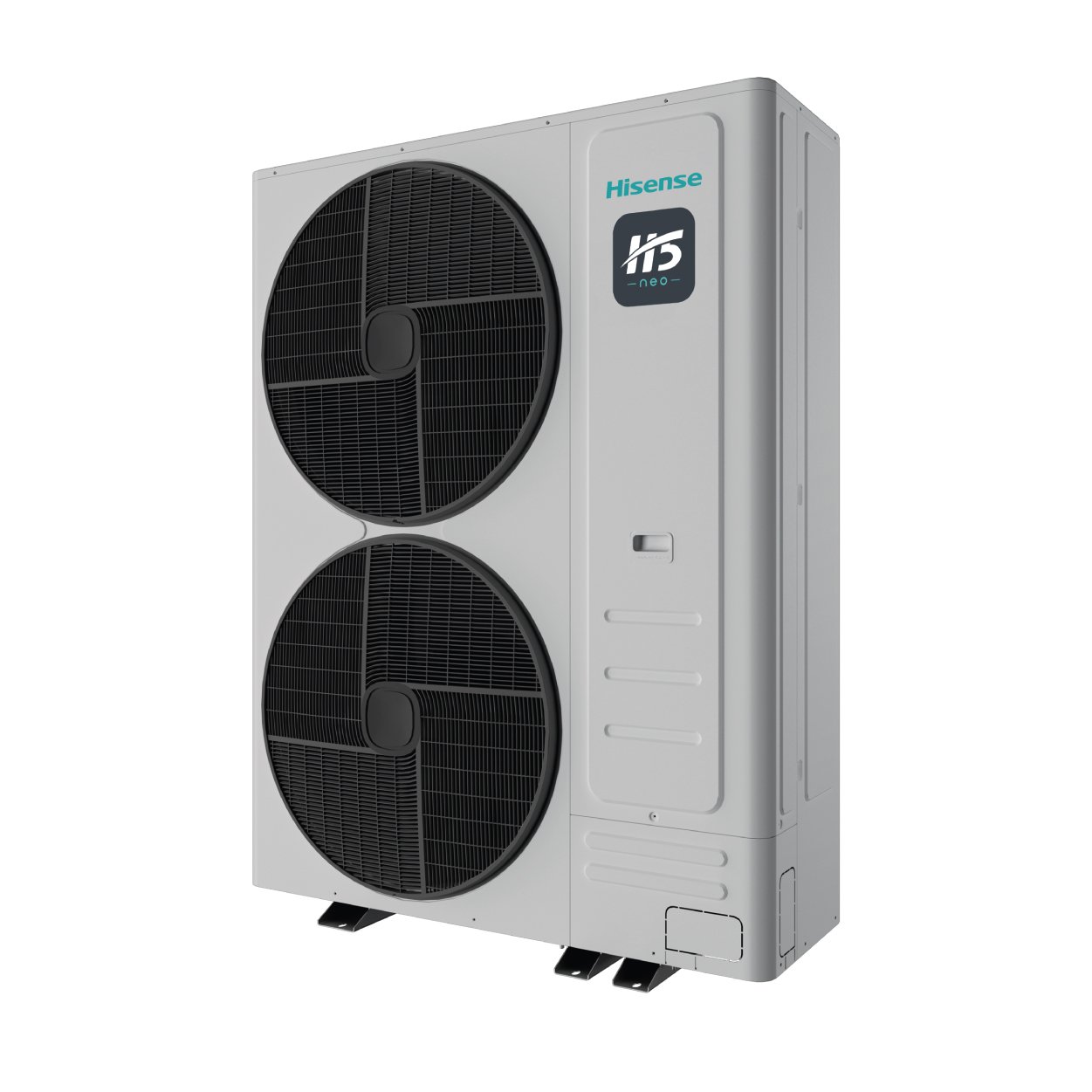

Residential/Mini VRF

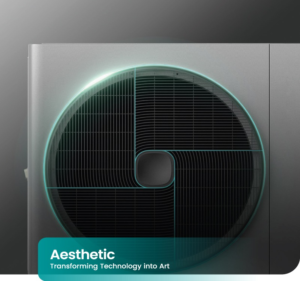

SLEEK DESIGN

The Hi-Smart H5 neo series reflects the company’s core values of “Beauty, Symmetry, and Unity” with its design that integrates squares and circles. This geometric fusion represents stability and harmony, demonstrating Hisense’s dedication to aesthetic equilibrium. The goal is to craft a visually appealing and engaging experience, transforming technology into an art.

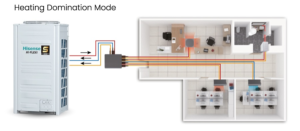

New Upgraded Switch Box

Switch box defies the complicated piping of 3pipe heat recovery systems and simplifies the system with lesser connections and piping including refrigerant and condensate piping. Now with larger capacity up to 85kW for larger systems and increased up to 16 branch ports for more indoor units’ connections.

Direct Refrigerant Cooling

This design employs direct refrigerant cooling with corrugated fins, reducing thermal resistance by 20% compared to the previous copper-aluminum cooling, ensuring efficient operation of the inverter module and stable operation of the unit at 55°C high temperatures.

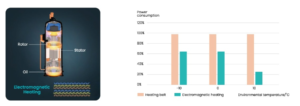

Electromagnetic Heating Technology

Featuring Hisense’s proprietary electromagnetic heating technology, the need for an external electric heating belt is eliminated. This innovation heats the lubricat-ing oil directly within the compressor’s fixed rotor, reducing heat loss and enhancing heating efficiency. As a result, it significantly reduces the low-temperature preheating time and can lower power consumption by up to 74%.

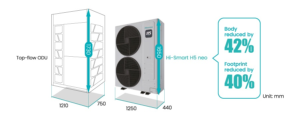

Slim and Compact Footprint

The Hi-Smart H5 Neo unlt, with its smaller footprint and compact body compared to the last generation top-flow unit for the same capacity, enables the utilization of the saved rooftop space for a green roof. This enhances the building’s aesthetics.

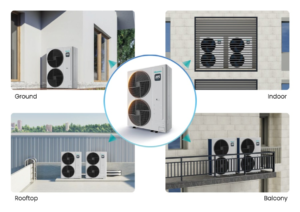

Anywhere & Everywhere

Thanks to its slim modular design, H5 neo offers unrivaled flexibility of installation location. Save your building’s most valuable area and place H5 in the small narrow spaces of your building. On the rooftop, balcony, or indoors; you choose!

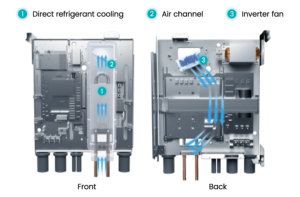

Integrated Air Cooling

The combination of an inverter fan, a direct refrigerant cooling module, and a built-in independent air channel constitutes on integrated air-cooling solution. The innovation of combining fan air supply with direct refrigerant cooling can lower the internal temperature of the electrical box by 5-10°C compared to traditional air-cooling methods.

Residential VRF/ Mini VRF Brochure Download Here

Residential VRF/ Mini VRF Catalogue Download Here

Details
